1. Features
Under-voltage lockout for both channels
High-level effective, supported 3.3V, 5V and 15V input
Integrated gate drivers and bootstrap functionality
Temperature detected output for MCU control
Cross-conduction prevention logic
Isolation 1500 VRMS min
600V maximum operating voltage
240mΩ Rdson@25℃
High-Side Under-Voltage Protection –Trigger level=8.2V –Reset level= 8.9V
2. Applications
BLDC Motor control

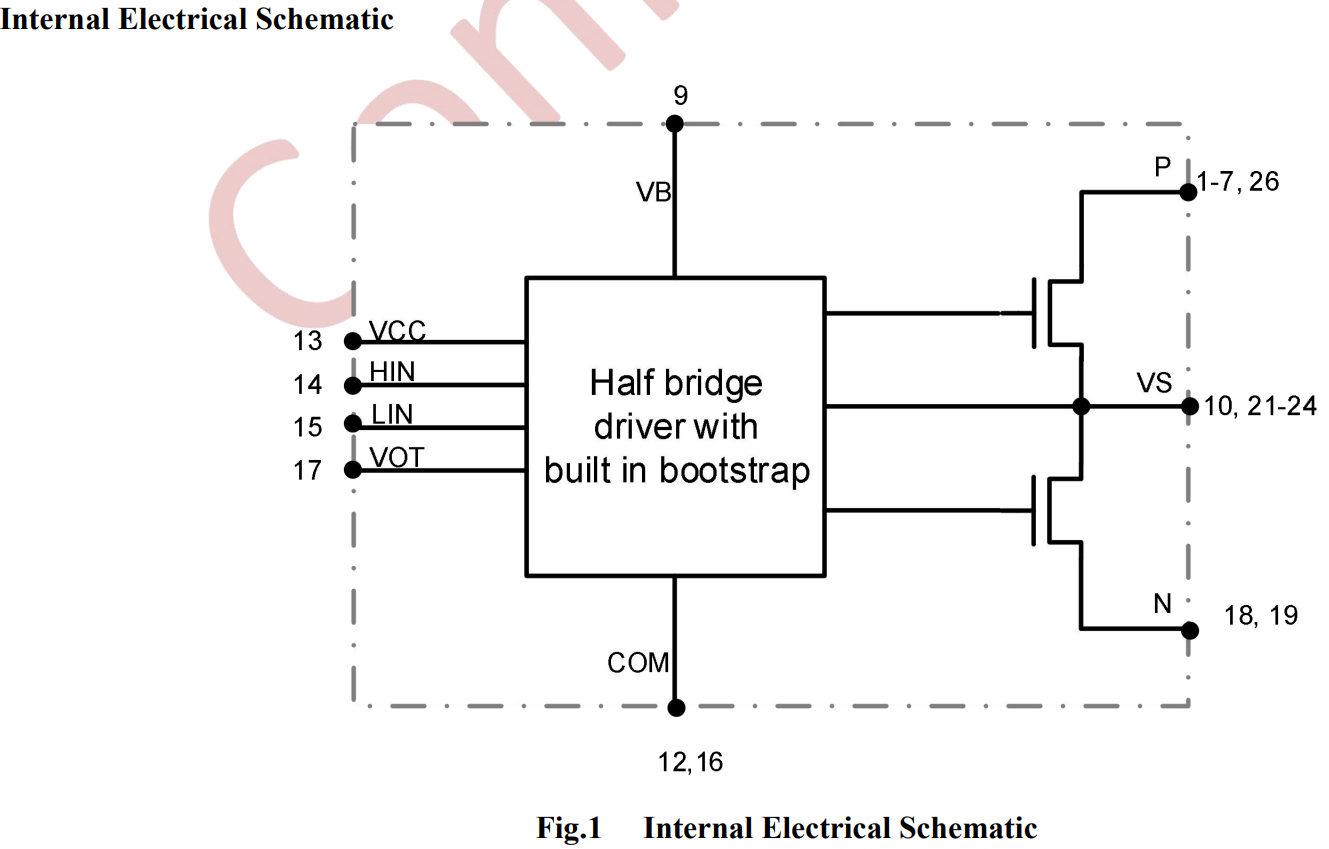

3. Description NSH156PQ is a 15A, 600V half-brigde intelligence power module designed for motor drive applications,
integrated 15A/600V MOSFET gate driver and bootstrap functionality in a small PQFN 5×6mm package.
It can be flexibly applied to single-phase and three-phase DC brushless motor drive.
1. Features
Under-voltage lockout for both channels
High-level effective, supported 3.3V, 5V and 15V input
Integrated gate drivers and bootstrap functionality
Temperature detected output for MCU control
Cross-conduction prevention logic
Isolation 1500 VRMS min
600V maximum operating voltage
240mΩ Rdson@25℃
High-Side Under-Voltage Protection --Trigger level=8.2V --Reset level= 8.9V
2. Applications
BLDC Motor control
3. Description NSH156PQ is a 15A, 600V half-brigde intelligence power module designed for motor drive applications,
integrated 15A/600V MOSFET gate driver and bootstrap functionality in a small PQFN 5×6mm package.
It can be flexibly applied to single-phase and three-phase DC brushless motor drive.

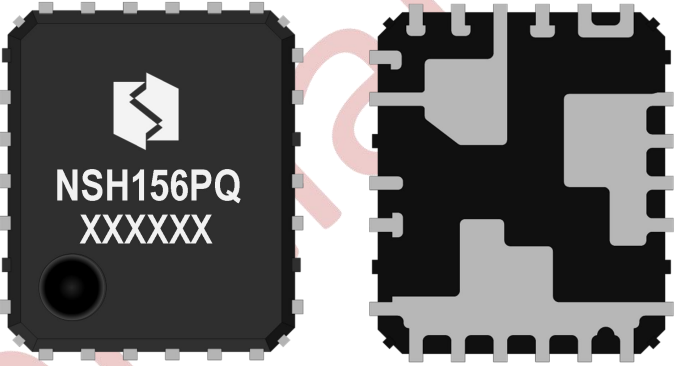

PART No.：NSH156PQ
Marking: NSH156PQXXXXXX
Package:PQFN5x6
Type packing of products:Tape and reel
SPQ:5 K
